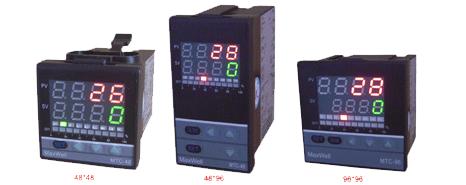

Controlador de Proceso MTC-MT Series Micro
MTC-MT Series Micro Process Controller
Features
Power supply:85~265VAC 50/60HZ
Input:Universal input(TC,RTD,Analog)
Display:Dual line four digits LED display
Output:Relay/SSR/4-20mA/Triac
Control:PID Auto-tuning function
Accuracy:0.2%F.S

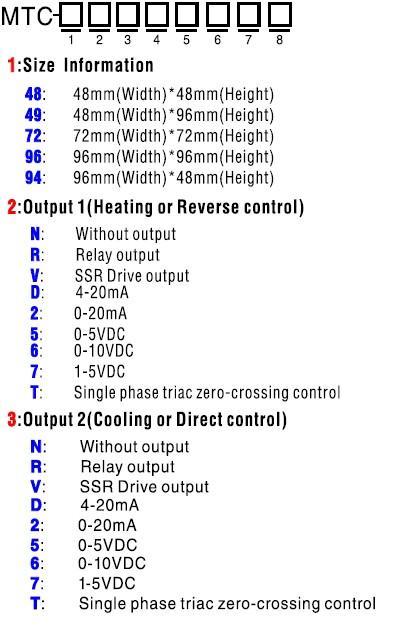

Available size: 48mm*48mm,48mm*96mm(Horizontal),72mm*72mm,96mm*96mm,96mm*48mm(Vertical)
Mounting:Panel Mount
Add-on Features
Overshoot supression
Super large and bright LED display

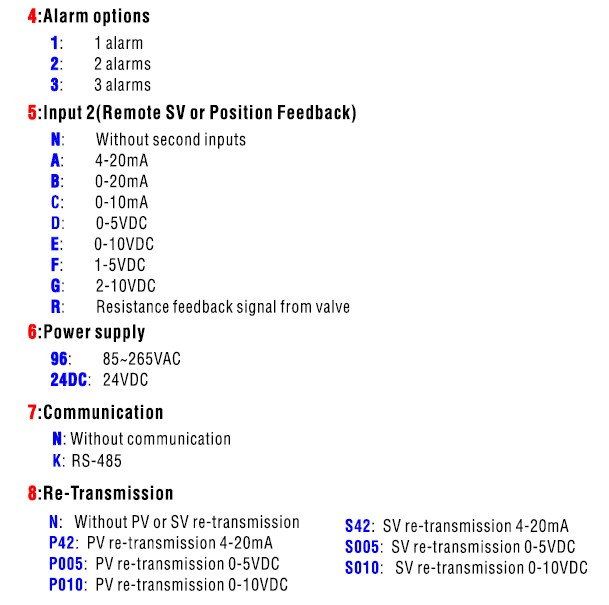

RS-485, 4-20mA Re-Transmission optional
Decimal points for all input signals.
C or F display selected on user’s discretion
Alarm standby function intergrated
Output graphic bar indication
Soft start function for analog output
Auto/manual control bumpless transfer
Remote Setting point
Valve position feedback
24VDC sensor power availalbe on request
