MCT40

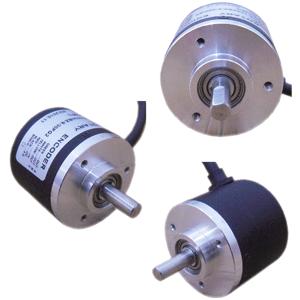

MCT40 Series Incremental Rotary Encoder(2 or 4 phase type)
Features
External Diameter: 40mm
Solid Shaft
Resolution: 100/200/500/1000/1024 ppr(Resolution for 2 or 4 phase type is limited)
Output Phase: A B or A B A/ B/
Output: Complementary/Open Collector/Voltage/Line Driver/Push-Pull(HTL with reverse signal)
Protection: IP50
Power supply: 8-30 VDC

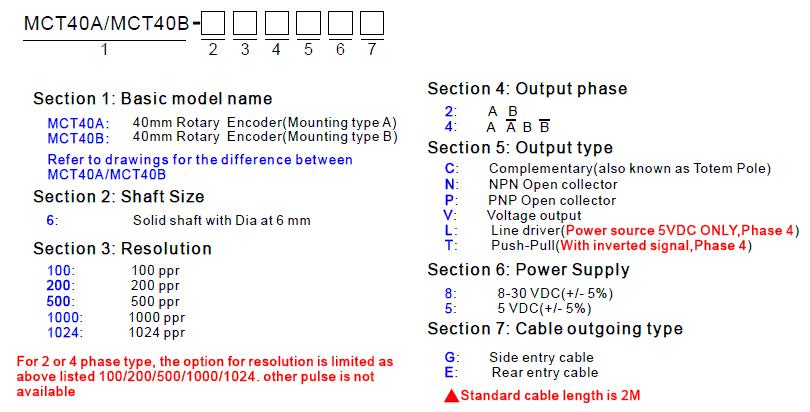

Ordering Information
